The Talaria Sting is powered by an impressive 60V 38Ah lithium-ion battery which can be swapped and/or removed in seconds, allowing the possibility of a limitless range with a simple battery swap.
Using electric automobile grade LG 21700 cells combined with state-of-the-art programmed BMS, our torque and efficiency make this bike an outstanding performer on the road or off.
Rated Voltage 60v (DC)
Rated Power / Peak Power 3700W @ 2100rpm
Shaft Output Torque 29.5nm
Transmission Gearbox + Chain
Rated Torque / Peak Torque 8.5nm / 31.8nm
Peak Efficiency 96.6%
Type PMSM
Mounting Position Centre Frame
Weight 7kg
External Diameter 180mm
Axial Length 130mm
Cooling Method Air Cooled
Type FOC
Weight 1.6kg
Dimensions (LxWxH) 240mm x 110mm x 50mm
Peak Efficiency 98.5%
Travelling Wave Current 85A
Highest Temperature 100 °C
Rated Rotation Speed 4300 rpm
Range of Rotation Speed 0-5300 rpm
Peak Efficiency 98%
Range of Efficiency 1.4mm - 22.5mm
Max Range * 63 Miles
Battery 60v 38.4A Lithium LG Cells
Speedometer TFT Digital
Battery Life Time 800 Cycles Before
Charger 10A 60V
Charging Time ** 4 Hours
* Range is dependant on speed/weight/braking and other factors
** Charging time is from 0-100%
Max Load 100kg
Net Weight 58kg
Forks Manitou (Optional) / RST - DNM
Wheel Type Spoke Wheels 19x1.6
Brakes 4 Piston Caliper Hydraulic Brakes
Dimensions (LxWxH) 1870mm x 780mm x 1040mm
Chassis - Swing Arm Material 6061 T4 & T6 Aluminium Alloy
Chassis Construction Method Forged 8000 Tons of Pressure
Rear Shock Absorber Fastace with Linkage
Front Tyre Size 70/100-19
Rear Tyre Size 80/100-19
Chassis Weight 9.5kg
Chassis Surface Anodizing Paint Treated

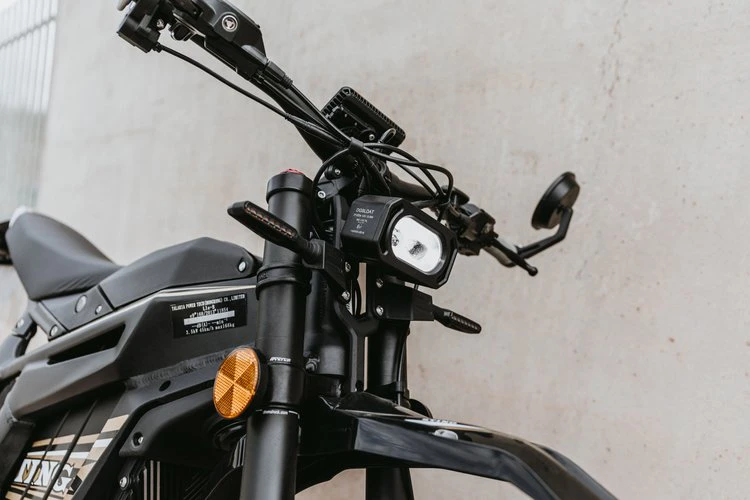

Headlight LED
Tyres CST
Brake Discs 203mm
Minimum Ground Clearance 270mm
Forged for adventure and built for life, Talaria Sting is a lightweight and compact bike frame. Using 6061 aluminium alloy with a superior forging process of 6000 tons of pressure, the frame is qualified to assure you a safe, fun and most importantly comfortable riding experience through even the toughest terrains.
Using high-quality hardware, superb layout and smart programming, the controller enables to have an extraordinary ability for transient current impact resistance, ultra-strong anti-interference, high-precision EABS voltage, discharge current control, error inspection and correction. This guarantees to bring the rider a powerful, exciting and safe riding experience.
The dash features a high-contrast OLED display, which will offer riders a clear data display with low power consumption. The display menu provides a range of information, which include top/average speed, range, battery data, riding mode, error codes, regen level and more.
The dash is also adjustable to allow different settings for different wheel sizes, sprocket sizes, motor regen levels, and changes between KM/H and MPH to enhance the compatibility of the bike.
