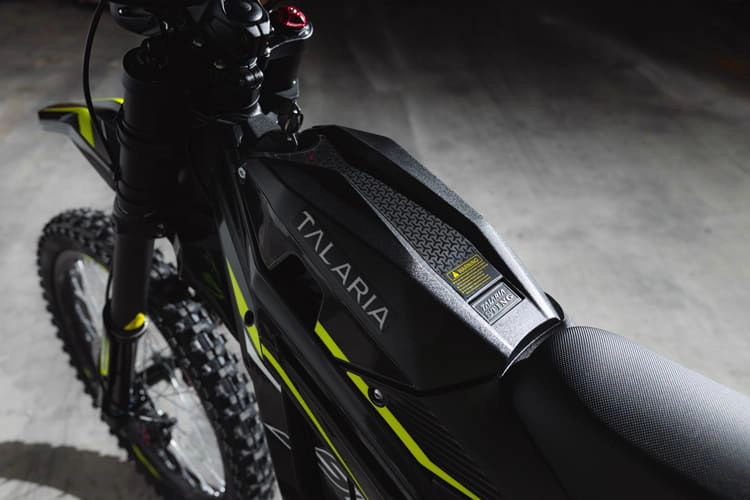

The Talaria Sting is powered by an impressive 60V 38Ah lithium-ion battery which can be swapped and/or removed in seconds, allowing the possibility of a limitless range with a simple battery swap.
Using electric automobile grade LG 21700 cells combined with state-of-the-art programmed BMS, our torque and efficiency make this bike an outstanding performer on the road or off.
Rated Voltage 60v (DC)
Rated Power / Peak Power 3700W @ 2100rpm
Shaft Output Torque 29.5nm
Transmission Gearbox + Chain
Rated Torque / Peak Torque 8.5nm / 31.8nm
Peak Efficiency 96.6%
Type PMSM
Mounting Position Centre Frame
Weight 7kg
External Diameter 180mm
Axial Length 130mm
Cooling Method Air Cooled
Type FOC
Weight 1.6kg
Dimensions (LxWxH) 240mm x 110mm x 50mm
Peak Efficiency 98.5%
Travelling Wave Current 85A
Highest Temperature 100 °C
Rated Rotation Speed 4300 rpm
Range of Rotation Speed 0-5300 rpm
Peak Efficiency 98%
Range of Efficiency 1.4mm - 22.5mm
Max Range * 63 Miles
Battery 60v 38.4A Lithium LG Cells

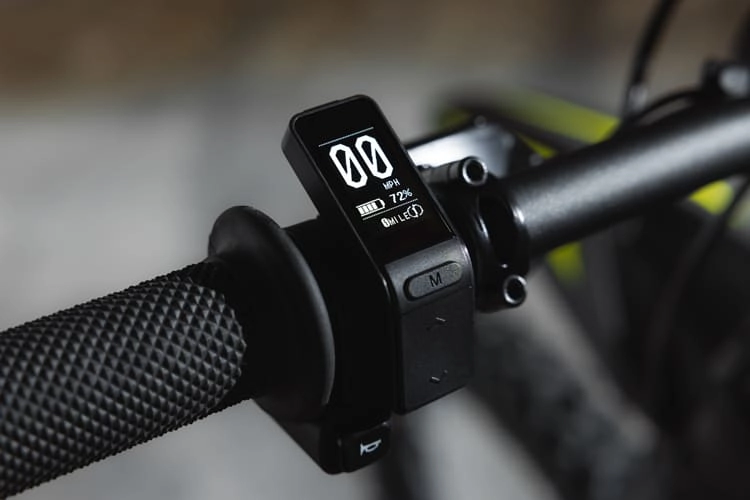

Speedometer TFT Digital
Battery Life Time 800 Cycles Before
Charger 10A 60V
Charging Time ** 4 Hours
* Range is dependant on speed/weight/braking and other factors
** Charging time is from 0-100%
Max Load 100kg
Net Weight 58kg
Forks Manitou (Optional) / RST - DNM
Wheel Type Spoke Wheels 19x1.6
Brakes 4 Piston Caliper Hydraulic Brakes
Dimensions (LxWxH) 1870mm x 780mm x 1040mm

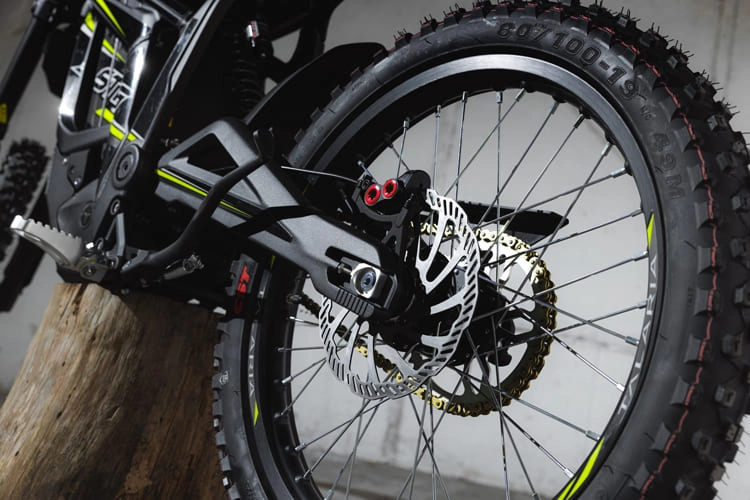

Chassis - Swing Arm Material 6061 T4 & T6 Aluminium Alloy
Chassis Construction Method Forged 8000 Tons of Pressure
Rear Shock Absorber Fastace with Linkage
Front Tyre Size 70/100-19
Rear Tyre Size 80/100-19
Chassis Weight 9.5kg
Chassis Surface Anodizing Paint Treated

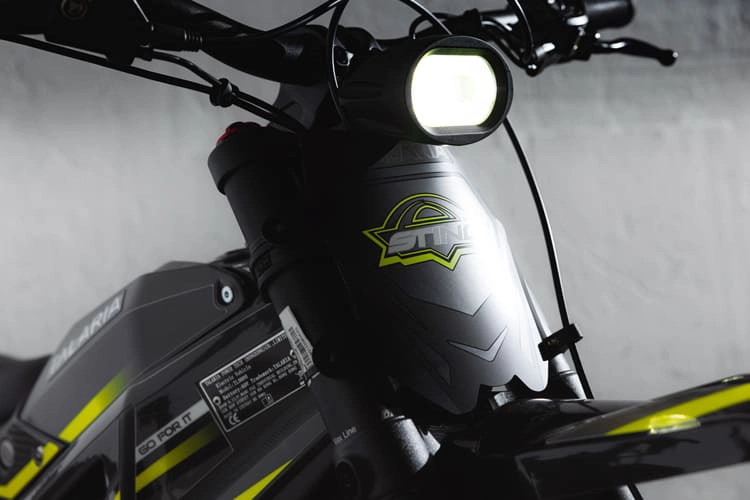

Headlight LED
Tyres CST
Brake Discs 203mm
Minimum Ground Clearance 270mm

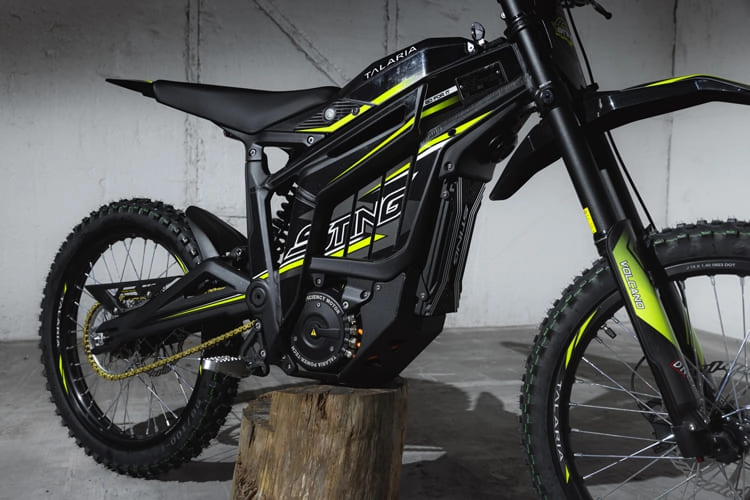

Forged for adventure and built for life, Talaria Sting is a lightweight and compact bike frame. Using 6061 aluminium alloy with a superior forging process of 6000 tons of pressure, the frame is qualified to assure you a safe and fun riding experience through even the toughest terrains.
Using high-quality hardware, superb layout and smart programming, the controller enables to have an extraordinary ability for transient current impact resistance, ultra-strong anti-interference, high-precision EABS voltage, discharge current control, error inspection and correction. This guarantees to bring the rider a powerful, exciting and safe riding experience.

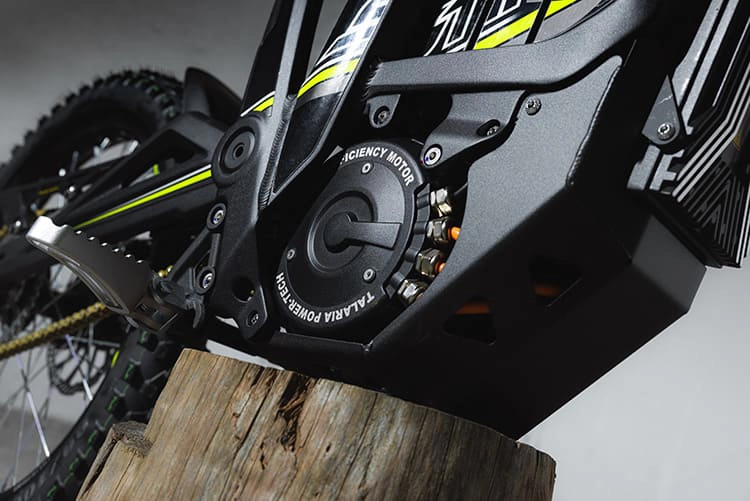

The high-efficiency brushless permanent magnet synchronous mid-drive motor, with top-class magnet material and advanced processing, is available to output 34N.m peak torque and 284N.m peak torque to the rear wheel.
With exquisitely crafted high-accuracy gears, the gearbox runs even quieter and is much more durable than any belt drive system. It’s time to say goodbye to that broken-belt anxiety.
